Product Description

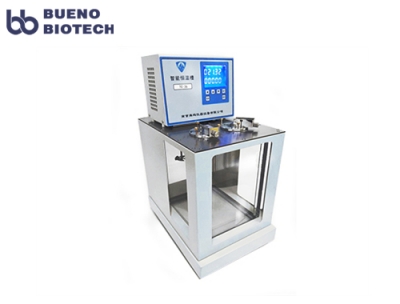

BTSC Series Visible Heating Circulating Water Bath | Heating Bath Circulator | Visible Thermostatic Water Bath with four transparent windows can observe the changing process of fluids or experimental reactions from various angles. The instrument is equipped with heating system. The temperature range is from room temperature to 300℃. With the circulating system, the water bath can let the liquid flow off from the tank and offer a secondary constant-temperature field. It is widely used in the analysis and testing of aviation kerosene, lubricating oil, diesel oil and other refined oil or crude oil.
P roduct Features
BTSC Series Visible Heating Circulating Water Bath | Heating Bath Circulator | Visible Thermostatic Water Bath
- Equiped with four-sided transparent windows, the reaction of samples can be viewed from various angles
- With imported plexiglass, the instrument can withstand high and low temperature and work for a long time.
- Fully enclosed compressor with high speed and low noise.
- With internal circulation system.
- Big screen LCD display, easy to operate.
- Over temperature protection system with alarm and automatic cut-off.
- RS232 or RS485 communication interface is optional and can realize the remote control.
Application
BTSC Series Visible Heating Circulating Water Bath | Heating Bath Circulator | Visible Thermostatic Water Bath is suitable for petroleum, chemical industry, electronic instrument, physics, chemistry, biological engineering, medicine and health, life science, light industry and food, physical property testing and chemical analysis and other research departments, colleges and universities, enterprise quality inspection and production departments. For example, the constant temperature of biochemical experiment or sample test, the measurement and calibration of thermometer and platinum resistance, supporting fermentation tank, polarizing apparatus, electrophoresis apparatus, photometer, chromatographic column, rotary viscometer, rotary evaporator, rheometer and so on.
Technical Specification
|
Model |
Temperature Range ℃ |
Digital Resolution ℃ |
Temperature Volatility℃ |
Tank Size (mm3) |
Tank Lid Size (mm2)
|
Tank Depth (mm) |
|
BTSC-15 |
ambient～200 |
0.1 |
0.1 |
Ф300x200 |
Ф170 |
200 |
|
BTSC-20 |
ambient ～200 |
0.1 |
0.1 |
Ф300x300 |
Ф170 |
300 |
|
BTSC-30 |
ambient ～200 |
0.1 |
0.1 |
Ф300x400 |
Ф170 |
400 |
|
BTSC-15D |
ambient ～300 |
0.1 |
0.1 |
Ф300x200 |
Ф170 |
200 |
|
BTSC-20D |
ambient ～300 |
0.1 |
0.1 |
Ф300x300 |
Ф170 |
300 |
|
BTSC-30D |
ambient ～300 |
0.1 |
0.1 |
Ф300x400 |
Ф170 |
400 |
|
BTSC-20A |
ambient ～200 |
0.001 |
0.02 |
Ф300x300 |
Ф170 |
300 |
Service
- 12 months warranty for BTSC Series Visible Heating Circulating Water Bath | Heating Bath Circulator | Visible Thermostatic Water Bath .
- Technical support is also available timely.
- Reply your enquiry within 24 working hours.
- OEM is available if the quantity is large.
- Package and shipping worldwide.
