Ultrasonic Processor

Probe Sonicator

Probe Sonicator

Advantages

Advantages of Ultrasonic sonicator| Probe Sonicator is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Crusher| Probe Sonicator (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.

Product Description

The Ultrasonic probe sonicator (Touch or LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.

Product Features

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.

Application

The Ultra sonicator| Probe sonicator  is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); sample homogenization and emulsification; accelerate dissolution, accelerate chemical reaction and other sample processing.

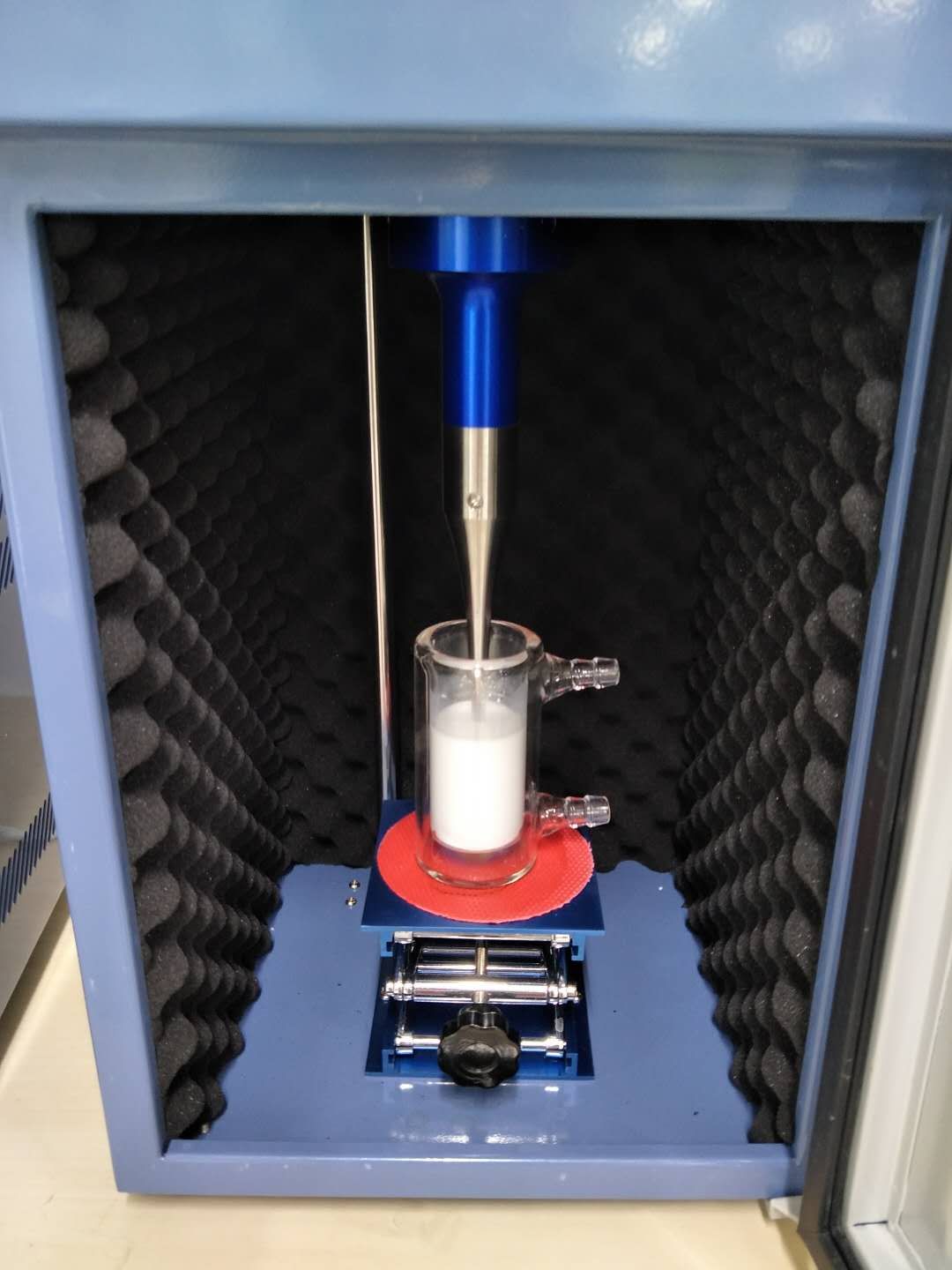

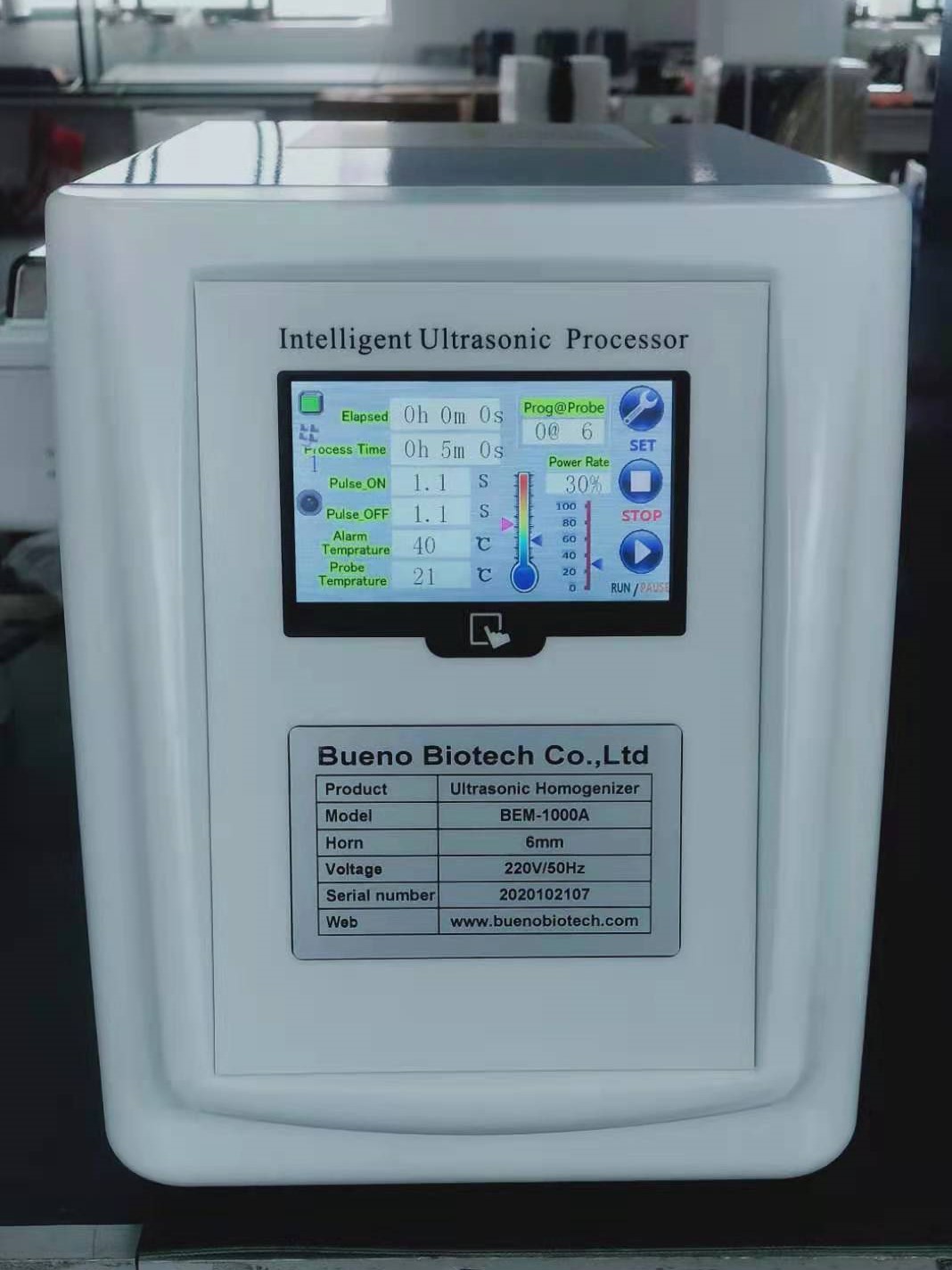

 1000w ultrasonic sonicatorQQ图片20180523144646



Technical Specification

Model

BEM-150A

BEM-650A

BEM -900A

BEM -1000A

BEM -1500A

BEM -1800A

BEM -3000A

Frequency

20-25

20-25

20-25

20-25

19-21

19-21

19-21

KHz

Power(W)

0-150

0-650

0-900W

10-1000

1500

20-1800

300-3000

Crushing Capacity

0.1-150

0.1-500

0.1-600

0.1-700

20-1000

10-1500

100-5000

ml

Input &Display

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Login Password

Yes

Yes

Yes

Yes

Yes

Yes

Yes

 Probemm

Φ6

Φ6

Φ6

Φ6 or 10

Φ22

Φ20 or 22

Φ35 or 50

Optional Probemm

Φ2、3、8

Φ2、3、8、10、12

Φ2、3、8、10、12

Φ2、3、8、10、12、15

Φ10、15、20、25

Φ10、15、20、25

Φ15、20、25、35、40、50

Sample Temperature Protection(℃)

0-100

0-100

0-100

0-100

0-100

0-100

0-100

Security System

Self-diagnosis function, automatic error correction, overload, overtemperature protection ,etc.

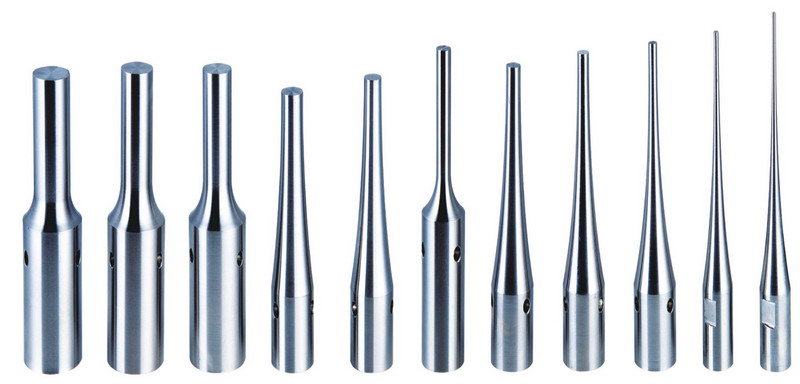

Probe Option

Probe Model

Inch

Frequency

Power Range

Crushing Capacity

Φ2

1/12″

20-25KHz

min-150W

0.2-5ml

Φ3

1/8″

20-25KHz

min-250W

3-10ml

Φ6

1/4″

20-25KHz

20-400W

10-100ml

Φ10

5/12″

20-25KHz

100-600W

30-300ml

Φ12

1/2″

20-25KHz

200-900W

50-500ml

Φ15

5/8″

20-25KHz

300-1000W

100-600ml

Φ20

4/5″

19.5-20.5KHz

400-1100W

100-1000ml

Φ22

5/6″

19.5-20.5KHz

400-1100W

200-1000ml

Φ25

1″

19.5-20.5KHz

800-1500W

500-1200ml

Φ40 1.6″ 19.5-20.5KHz 900-3000W 500-5000ml



 201707111410331380260
