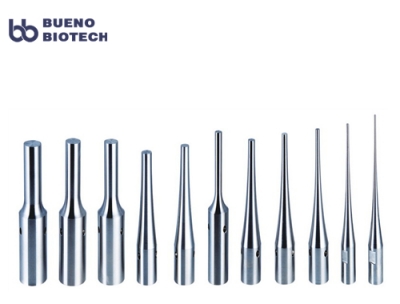

Probes (sometimes referred to as horns) are one-half wavelength long tools that act as mechanical transformers to increase the amplitude of vibration generated by the converter. They consist of two sections each having different cross-sectional areas.
The greater the mass ratio between the upper section and the lower section, the greater the amplification factor, and the greater the peak-to-peak excursion at the tip of the probe. Probes with smaller tip diameters produce greater intensity of cavitation, but the energy released is restricted to a narrower, more concentrated field. Conversely, probes with larger tip diameters produce less intensity, but the energy is released over a greater area. The larger the tip diameter, the larger the volume that can be processed, but at lower intensity. High gain probes produce higher intensity than standard probes of the same diameter, and are usually recommended for processing difficult applications.
Probes are fabricated from high grade titanium alloy Ti-6Al-4V because of its high tensile strength, good acoustical properties at ultrasonic frequencies, high resistance to corrosion, low toxicity, and excellent resistance to cavitation erosion.
Probe Option
|
Model |
Inch |
Frequency |
Power Range |
Crushing Capacity |
|
Φ2 |
1/12″ |
20-25KHz |
min-150W |
0.2-5ml |
|
Φ3 |
1/8″ |
20-25KHz |
min-250W |
3-10ml |
|
Φ6 |
1/4″ |
20-25KHz |
20-400W |
10-100ml |
|
Φ10 |
5/12″ |
20-25KHz |
100-600W |
30-300ml |
|
Φ12 |
1/2″ |
20-25KHz |
200-900W |
50-500ml |
|
Φ15 |
5/8″ |
20-25KHz |
300-1000W |
100-600ml |
|
Φ20 |
4/5″ |
19.5-20.5KHz |
400-1100W |
100-1000ml |
|
Φ22 |
5/6″ |
19.5-20.5KHz |
400-1100W |
200-1000ml |
|
Φ25 |
1″ |
19.5-20.5KHz |
800-1500W |
500-1200ml |
